M12: UL-approved K and L cable connectors are now available from binder, designed for AC/DC transmission.

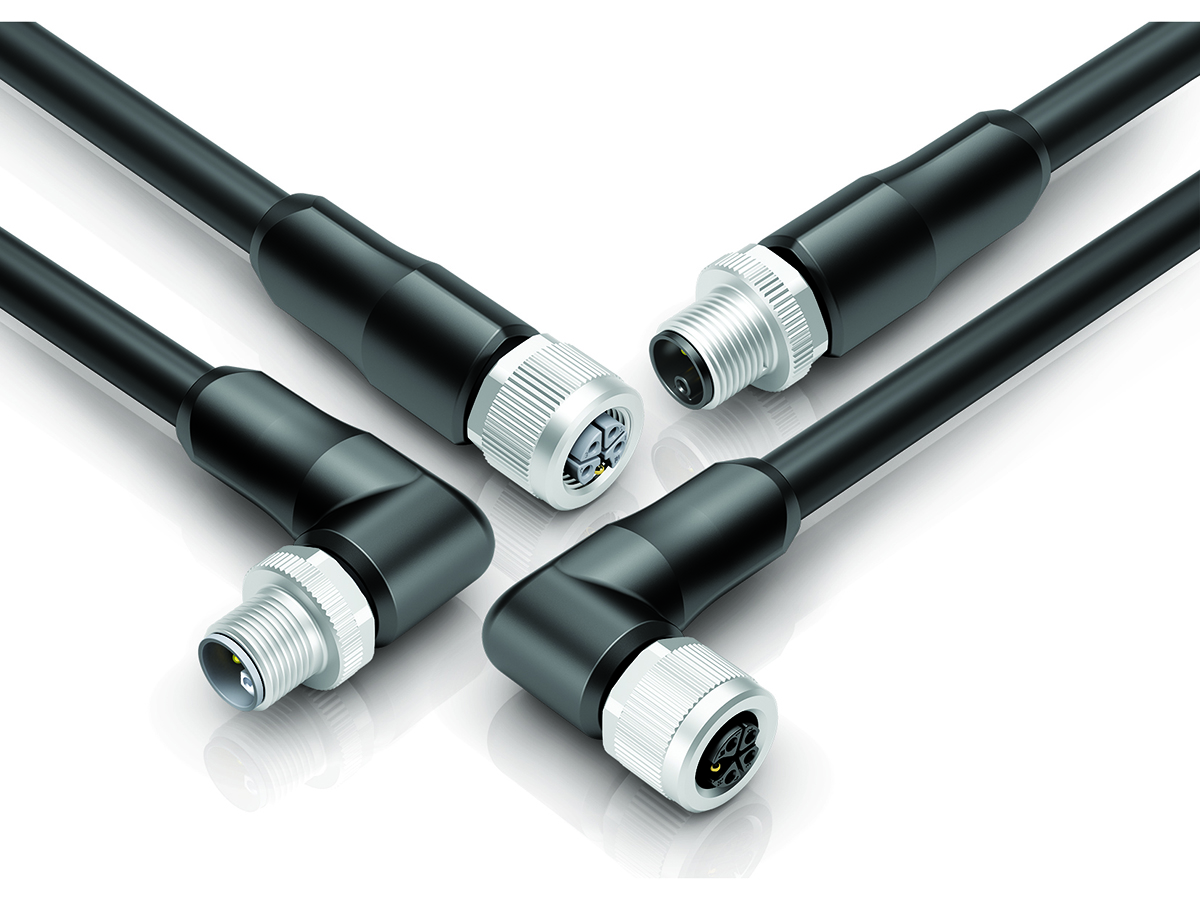

K- and L-coded M12 connectors are suitable for transmitting electrical power to AC and DC applications in factory automation. binder offers a selection of overmoulded cable components that were developed for use in North America according to the UL 2238 standard.

binder is expanding its M12 portfolio by adding K- and L-coded overmoulded cable connectors of the 823 and 824 series, which were developed according to UL 2238. These are primarily intended for use in the power supply of field devices in automation technology. Here, the transmission of electrical power via compact M12 interfaces has become a fundamental requirement. The connectors provide a compact alternative to power connections using 7/8-inch technology.

The K-coding indicates 5-pin connectors for AC supply of e.g., drives or frequency converters. Target applications of the likewise 5-pin connectors with L-coding include DC miniature drives, decentralized I/O modules, and other automation components that are supplied with DC voltage in field bus systems.

The K-coded products of the binder 824 series with screw locking are characterized by their ampacity of up to 12 A per pin under continuous load at rated voltages of 630 V(AC) respectively. The L-coded products in the 823 series have a rated current of 16 A and a rated voltage of 63 V (DC). Gold-plated contacts guarantee reliable current transmission. The fully overmoulded connectors ensure the protection of the interface according to IP68.

Ready for the markets of North America

The rapid and seamless introduction of new products to the markets of different world regions is an increasingly important competitive demand. Export to North America, for example, requires conformity to US safety regulations. This in turn can be proven by certification from a qualified and recognized test laboratory. With the UL approval from Underwriters Laboratories, manufacturers of electromechanical connectivity products can prove that their components meet the safety requirements for North America. Interfaces designed for rated currents up to 16 A and rated voltages up to 630 V require approval according to UL 2238. UL 2238 certification is currently in preparation.

M12 – robust, flexible, reliable

The K- and L-coded overmoulded M12 cable connectors were developed in conformance with IEC 61076-2-11 for use in industrial automation environments. Thus, product designers and installers are provided with a robust and variably applicable interface technology that ensures reliable power transmission to AC and DC field components even at high ambient temperatures. The IP68-compliant interfaces feature a protected seal within the M12 socket, and the M12x1 thread is equipped with an anti-vibration lock. Furthermore, connection cross-sections up to 2.5 mm2 are available.
