I/O-USB Type-C Connector DX07 from JAE at Rutronik

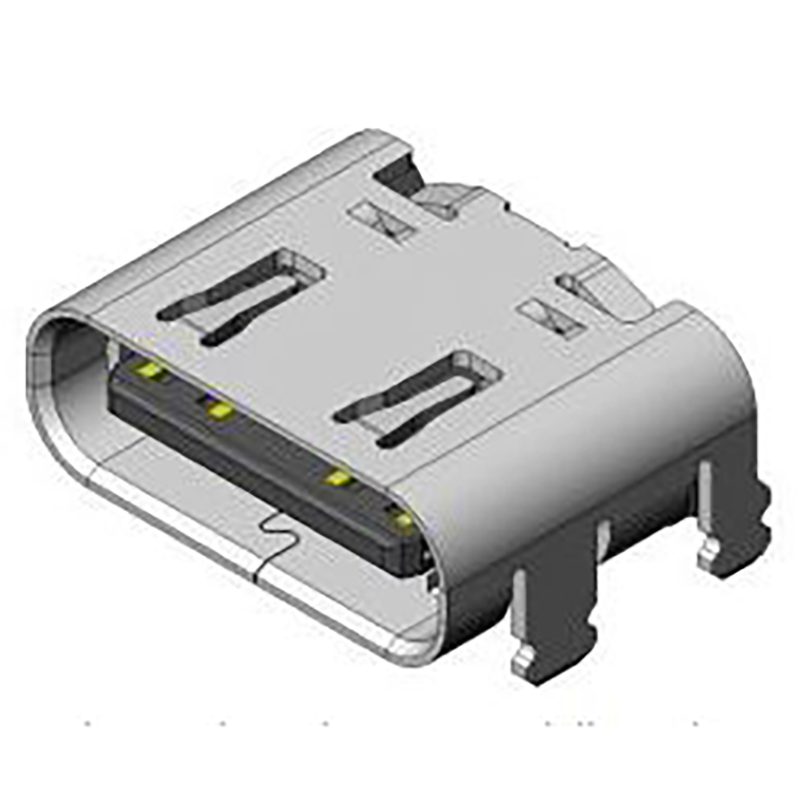

It is mounted at right angles on the board and is suitable for single-row surface mounting in up to 16 positions. Applications are diverse, ranging from mobile device chargers and power adapters to wall-mount control panels, security systems, gateways, and hi-fi applications.

JAE's DX07 connectors come in 1,500 pieces/reel in an embossed tape package and are available at rutronik24.

At just 1.58mm, the jacks are very space efficient to mount. The rated voltage is 48Vrms with a maximum rated current of 5A. The initial contact resistance is a maximum of 40mΩ, while the insulation resistance is at least 100MΩ. With 10,000 mating cycles and reliable functionality at operating temperatures from –40° C to +85° C, JAE's connector is an optimal choice for a wide range of applications.

Further specification:

• Shell DIP length 1.2mm
• Without backplane
• Dielectric resistance voltage AC 100Vrms (1 minute)
• Nickel gold plated contacts

Other applications:

• Lithium motor control
• Wall Control Panel
• Smartbox compressor
• Security system
• Gateway
• Hi-Fi
• Chargers for mobile devices
