Boards/Backplanes

SoM with NXP i.MX93 in OSM-L form factor

11th April 2024
Sheryl Miles
0

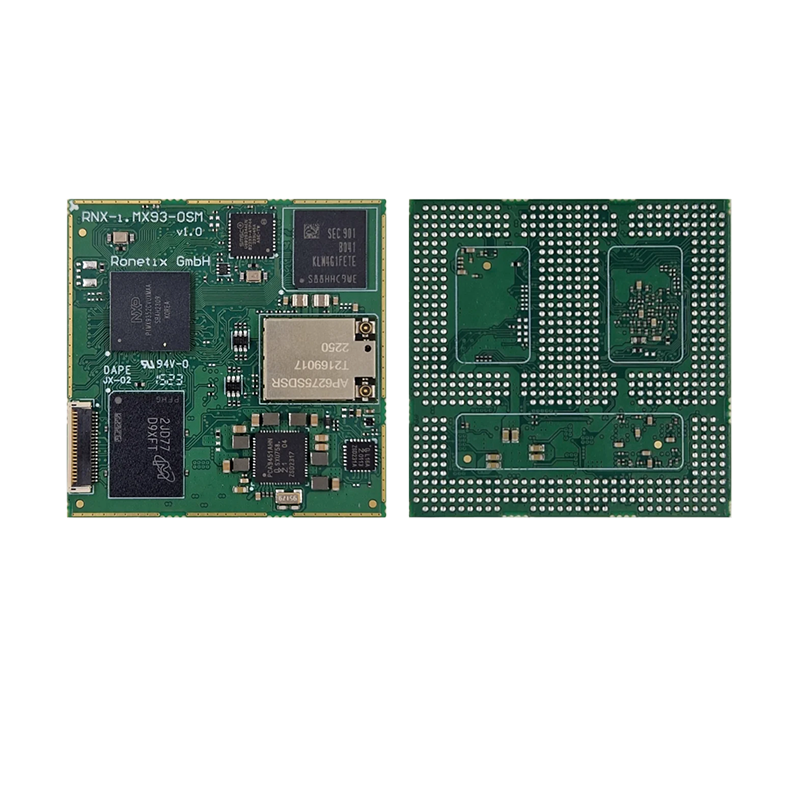

Ronetix, a developer and manufacturer of high-performance System on Modules (SoM) solutions, announces its upcoming OSM-L 45 x 45mm SoM based on NXP i.MX93 64-bit dual-core 1.7GHz ARM Cortex-A55, alongside 250MHz Cortex-M33 for low latency and real-time tasks, up to 2GB LPDDR4-RAM and 512GB eMMC.

The module can be soldered directly to the PCB and is suited for fully automated soldering, assembly, and testing processing.

The System-on-Module with two CAN and two Ethernet interfaces is designed especially for gateways and all areas of industrial automation. The Neural Processing Unit (NPU) Arm Ethos U-65 micro makes the acceleration of neural networks in high-performance embedded devices possible. It is ideal for use in machine vision applications and intelligent energy management systems. The microNPU offers increased performance for more demanding applications, providing computing power into the 0.5 TOPs range.

For evaluation and design-in of the new RNX-iMX93-OSM modules, Ronetix provides a carrier board RNX-OSM-CARRIER. A Yocto based Linux Board Support Package is available.

Highlighted features:

  • SoC NXP i.MX93
  • Ethos-u65 Neural Processing Unit (NPU)
  • 2x Cortex-A55 @ 1.7GHz
  • 1x Cortex-M33 @ 250MHz
  • CAN, I2C, SPI, UART, FlexIO
  • Dual Gigabit Ethernet, one with TSN support
  • Wi-Fi 802.11ax
  • Form factor: OSM Size-L, 45 x 45mm
