SoC BGA Processor (Elkhart Lake Platform 4.5~12W), CPU bottom mounted, with enhanced performance and Intel® UHD Graphics. Targeting the entry-level application market, the ECM-EHL3 comes with rich I/O capabilities and advanced security features, making it an ideal choice for industrial automation, retail, smart city, IoT solutions, etc.

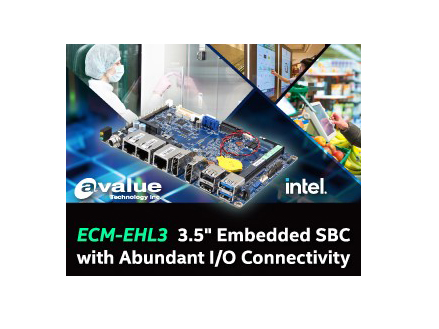

The 3.5” SBC ECM-EHL3 features flexible I/O, including 2 USB 3.1 Gen.2, 6 USB 2.0, 2 RS-232/422/485, 4 RS232 and a wide DC power input range of 9~36V. It supports triple display: Dual DP, LVDS/eDP for various industry applications. ECM-EHL3 is designed with three M.2 expansion slot, enabling extensive expansion such as M.2 E-Key PCIe/USB for Wifi module connection, M.2 B-Key SATA/USB, supporting WWAN+GNSS or storage, and M.2 M-Key PCIe for storage. In addition, the three Ethernet ports, dual 1GbE & one 2.5GbE Intel Gigabit Ethernet ensure high speed and reliable Ethernet connection, perfectly suited for most industrial applications.
ECM-EHL3 main features:
- Bottom Layer Soldered Processor
- Single DRAM Socket, Max, Up to 32GB DDR4 3200MTs (non-ECC Supported)
- Triple Display, 2 x DP++, 1 x 2CH LVDS (share with eDP, default LVDS)
- Triple Expansion Slot, M.2 Key-B, M.2 Key-E, M.2 Key-M
- Three Gigabit Ethernet, 1 x 2.5GbE, 2 x 1GbE
- Wide DC-Input, +9~36Vdc
ECM-EHL3 main applications:
- Industrial and Factory automation
- Retail, Digital Signage, KIOSK
- Infotainment
