This motherboard comes with improvement on performance and bug step ahead with Intel UHD Graphics target entry-level application market.
With improved performance, I/O capability, and security features, EMX-EHLP is the ideal motherboard for gaming, retail, digital signage, ATM machine, surveillance, and parking management system.

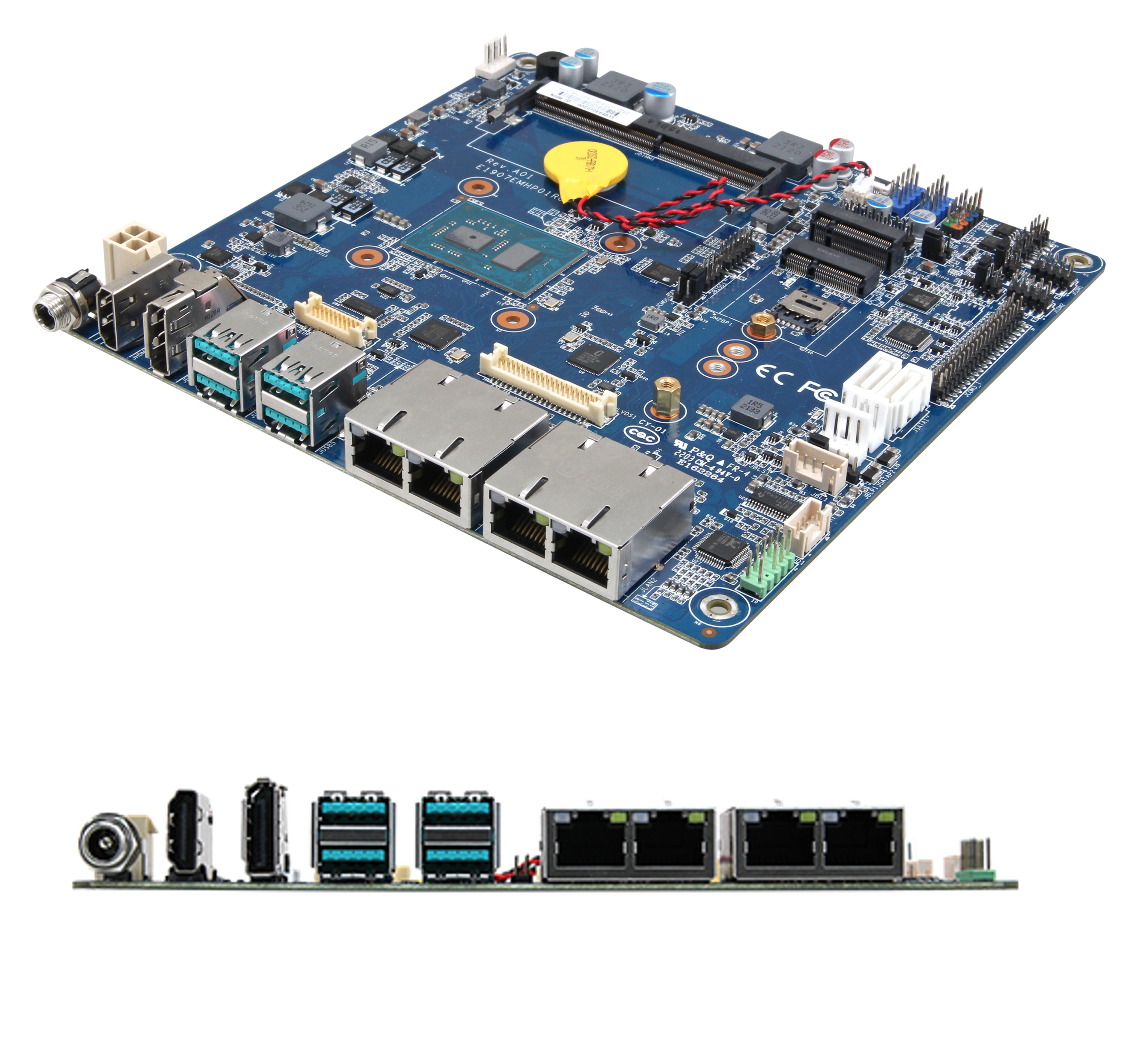

Thin Mini ITX motherboard EMX-EHLP features flexible I/O supports 2 x USB 3.1 Gen.2 and 2 x USB3.1Gen 1 at I/O, 4 x USB 2.0, 4 x RS-232, 2 x RS-232/422/485 with DC power input 12~ 24V. It supports one DP and one HDMI display and LVDS co-lay with DP for all kinds of applications. This motherboard design with two M.2 slot: M.2 B-Key SATA/PCIe/USB supports WWAN+GNSS or SSD and E-Key support Wi-Fi module, PCI-e x1 and USB2.0 signal. Also, EMX-EHLP offers four Intel 2.5 Gigabit Ethernet with TPM2.0.
EMX-EHLP main features:
- Intel Atom x6000E & Celeron Processor Thin Mini ITX
- One 260-pin DDR4 3200MHz SO-DIMM socket, supports up to 32GB Max
- DP++, HDMI, Dual channel 18/24-bits LVDS (co-lay eDP)
- 4 x Intel I225/226LM 2.5 Gigabit Ethernet
- Audio Codec & TI TPA3113D2 Stereo Class-D 8Ω/6W x 2 Audio Amplifier
- 2 x USB3.2 Gen2 and 2 x USB 3.2 Gen 1 at I/O, 4 x USB 2.0 by pin header
- 2 x SATA III, 2 x SATA Power, 4 x RS232, 2 x RS232/422/485, 16-bit GPIO
- 1 x M.2 Key E 2230 support Wifi module, 1 x M.2 Key B support WWAN+GNSS or SSD
- Line-out & Mic-in & Front audio pin-header, Onboard TPM 2.0
- DC in +12~24V
EMX-EHLP main applications:
- Gaming
- Retail, Digital Signage, KIOSK
- ATM machine
- Surveillance and parking management system
