TIP introduce blueprint for private 5G networks
The Telecom Infra Project (TIP) announced the release of its private 5G blueprint, following a successful trial led by its 5G Private Networks solution group.
Private 5G networks are on the rise but many deployments today are custom projects that are expensive to implement and maintain. The TIP 5G Private Networks solution group, chaired by Telefonica, recently completed a trial that shows how the economics of private networks can be transformed through technological innovation.
Using a computer vision application as a driving use case, the group combined private 5G with edge compute for service components with strict requirements - i.e., video processing and the User Plane Function (UPF) - while taking advantage of the efficiencies of a central cloud, where possible. The TIP solution group demonstrated a number of levers to produce a blueprint for a more cost-effective and scalable private 5G solution.
Cloud native platform for edge and public cloud
The solution adopts a cloud native platform that supports virtualised and containerised network functions and extends across the customer premises at the edge and the cloud, creating a hybrid cloud.
Rakuten Symphony (formerly Robin.io) provided its Symworld Orchestrator (formerly Multi Data Centre Automation Platform (MDCAP)) and Symworld Cloud Native Platform (CNP) components for the deployment of multiple clusters in the cloud and at the edge. Orchestrator manages the deployment of the Kubernetes cluster onto the bare metal servers at the edge, and the deployment of both the Mobile Core UPF function and the Computer Vision application. CNP also performs lifecycle management for the Kubernetes clusters on both the edge and the cloud servers.
Open-source automation toolchain
The solution adopts an open-source automation tool chain that supports workflows for the installation, configuration, testing and live operation of software components and infrastructure.
Tech Mahindra integrated industry-standard open-source tools into workflows that orchestrated the component repositories, the cloud and edge platforms and the test equipment. The workflow engine integrates the deployment and test platform management services, handles activities such as artifact management, release management, service orchestration and test and log management, and automates use cases such as OS and cluster onboarding and network function onboarding and updating.
Open source, disaggregated 5G NSA core
The solution adopts an open source, disaggregated 5G NSA core that supports separation of control plane and user plane functions across cloud and edge (CUPS).
NTT Data integrated the OMEC core from the Open Networking Foundation into the hybrid edge/cloud architecture and validated the integration. This required the creation of a comprehensive mobile core test plan adapted to 5G Private Networks, and the development of scripts for the different scenarios that would trigger tests from within the Spirent test suite under the control of the automation workflow and validate the test results.

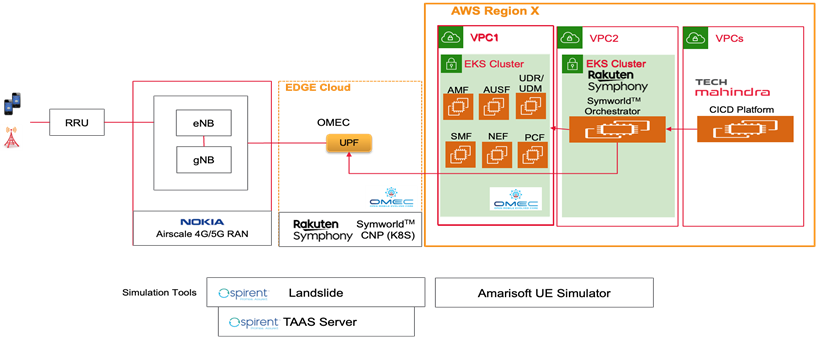

The architecture and components of the trial have been encapsulated in a blueprint that is suitable for replication in other scenarios. The blueprint is designed to satisfy a number of requirements for the cost-effective and automated delivery of private network services:
On-premises dedicated 5G connectivity to enable business critical applications that require high levels of network availability, high network density, in terms of number of devices connected in the deployment area, and/or high throughput connectivity, particularly in uplink.
On-premises compute, storage & routing to enable applications that demand low latency, high bandwidth, location accuracy, and/or data sovereignty through full control, privacy, and ownership of the data.
Public Cloud-agnostic computing for service components with less strict requirements to exploit the efficiencies of the public cloud.
Automated software lifecycle management from delivery to operations. This eliminates on site, manual intervention that usually is one of the most significant sources of expenditures for dedicated private networks. Once a solution is deployed it also automates release management of all individual service components.
Centralised management platform to provide a single management portal for all distributed customer sites.
HW-SW Disaggregation with transparent, optimised licensing fees and equipment costs through the appropriate use of open source software and commodity off-the-shelf (COTS) hardware.
Replicability of the solution with the exact same features and characteristics across multiple customers.
“The cost-effective deployment of private 5G networks at scale requires a comprehensive, automated approach to lifecycle management. Our expertise at network automation and toolchain integration helped bring the solution to life,” said Vivek Tiwary, Head of Global Delivery, Network Services at Tech Mahindra.
"We are delighted that Symworld Cloud platform has been an integral part of the TIP 5G Private Network solution blueprint to demonstrate highly efficient and automated cloud-native deployment, lifecycle management and orchestration solution that transforms private 5G rollout and management for the edge,” said Subha Shrinivasan, VP Customer Success, Unified Cloud BU, Rakuten Symphony. “We are excited that this blueprint will help operators to unlock opportunities to monetise edge deployments."
