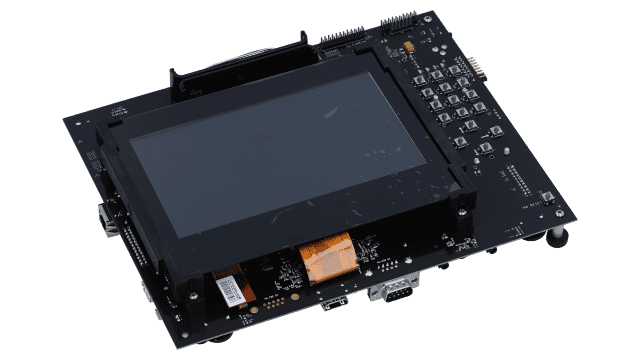

AM438x Electronic Point of Sale (EPOS) Evaluation Module

Texas Instruments

Description:

The AM438x Electronic Point of Sale (EPOS) Evaluation Module (EVM) enables developers to evaluate the TI Sitara AM438x processor family (AM4382, AM4384 and AM4388) and begin building Point of Sale (POS) applications such as handheld Electronic Financial Transaction (EFT) terminals, pin pads, mobile/portable POS terminals, vending machines, petro/fuel dispensers, ATMs, electric vehicle charging stations, and others.

Features:

Hardware:
- AM438x Cortex-A9 Processor
- 1GB LPDDR2
- TPS65218 Power Management IC
- 7" capacitive touch screen LCD
- Camera module
- On board eMMC memory
- Connector for Wilink8
- Tamper daughtercard
Software:
- Linux
Connectivity:
- Gigabit Ethernet (1)
- Magnetic Card Reader (1)
- Smart Card Reader (1)
- USB2.0 (1)
- HDMI (1)
- JTAG (1)
- UART (1)
- Audio in/out (1)

Type: Evaluation Modules & Boards

Part number: TMDXEVM438X-EPOS

Technical Documents

Download user guide for AM438x Electronic Point of Sale (EPOS) Evaluation Module by Texas Instruments
