The IMDT Renesas V2H-based family of products delivers advanced functionality and high performance for Robotic, IoT, and industrial applications. Equipped with a powerful, Arm-based CPU and Renesas proprietary AI accelerator, these products support diverse uses, including high-bandwidth communications, machine learning, and high-definition image processing.
The RZ/V2H processor features Renesas’s proprietary AI accelerator, the DRP (Dynamically Reconfigurable Processor)-AI3, which boasts a power efficiency of 10 TOPS/W. Additionally, it integrates four Arm Cortex-A55 CPU cores that reach a maximum operating frequency of 1.8GHz, tailored for Linux application processing.
For high-performance real-time processing, it includes two Cortex-R8 cores operating at 800MHz, alongside one Cortex-M33 core serving as a subcore. By integrating these cores into a single chip, the device effectively manages both vision-AI and real-time control tasks, making it ideal for demanding robotics applications.
“IMDT’s mission is to simplify and accelerate the development of cutting-edge vision and AI-powered products and systems,” says Avi Shimon, CEO of IMDT. “The RZ/V2H, with its AI capabilities and multisensor support, is ready for our next-generation products that target the complexity of multisensor and AI requirements for new-generation products across various markets – Robotics, Autonomous Machines, and Industrial.”
The IMDT V2H based SOM supports 4 x 4-lane MIPI CSI-2 connections, enabling attachment of up to four cameras. Additionally, the full module provides customisable options such as onboard Wi-Fi/Bluetooth, various memory and storage capacities, and PHY configurations, allowing users to tailor the system to their specific needs.

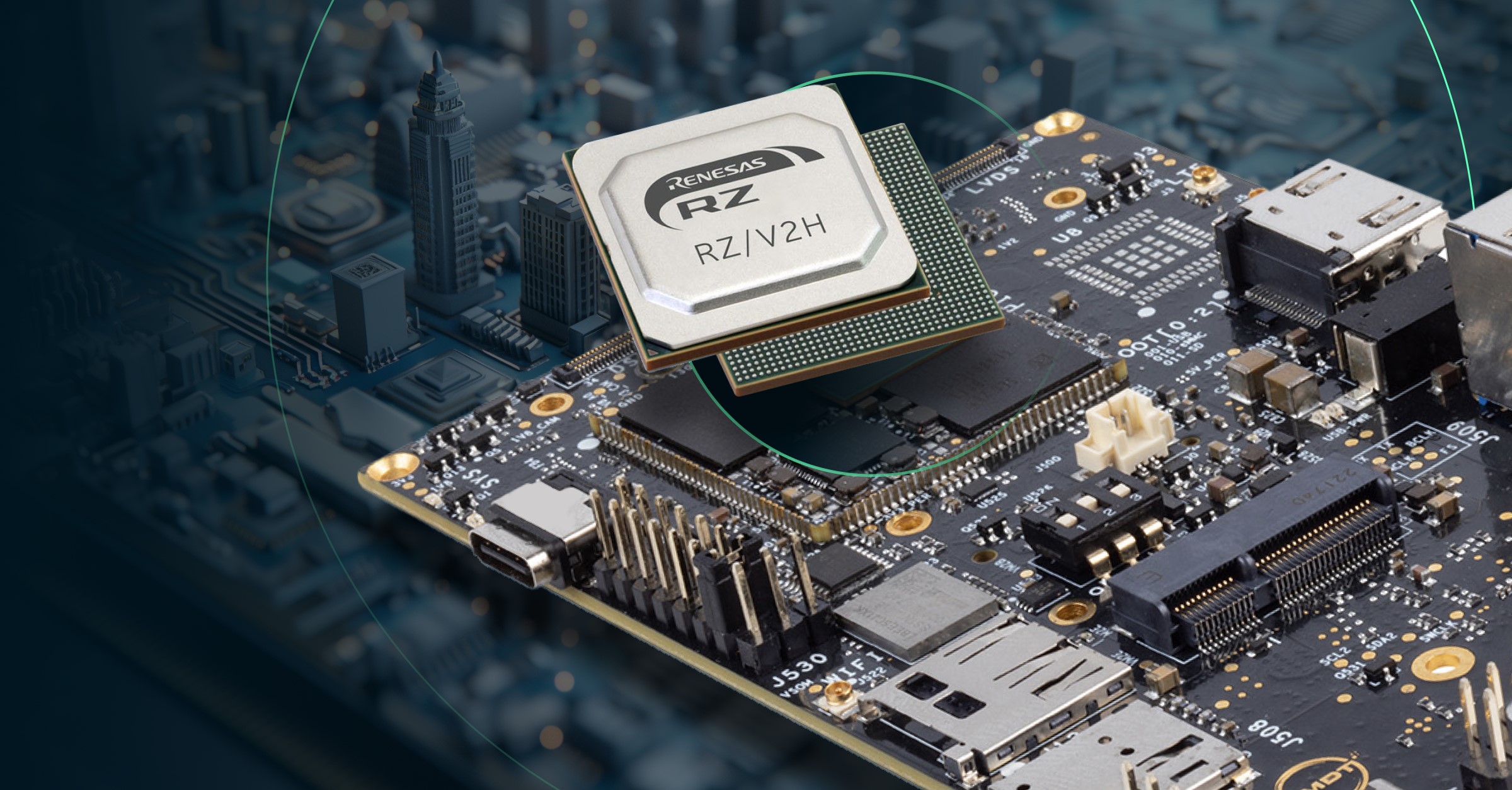

The IMDT V2H SBC carrier board transforms the IMDT V2H SOM into a compact, high-performance mini-computer. Measuring 125 x 80 x 20mm, this fully customisable small form factor SBC features a cost-effective system design, ideal for diverse applications in robotics, drones, and smart city projects.
The V2H SBC provides a multitude of assembly options, personalised and adjusted to meet specific customer needs, alongside comprehensive onboard connectivity. It presents developers with an energy-efficient solution that occupies minimal space.
The V2H product family and its evaluation kits are currently open for pre-order. Pricing begins at $149 for the SOM, $299 for the SBC, and $749 for the EVK.
Key features:
- Quad core A55 + Dual cortex R8 + Cortex M33
- Multi camera connectivity, up to 4X4-lane MIPI CSI
- Built in AI accelerator
- 4K encoder/decoder
- Accelerator engines
- Various communication/storage/network interfaces
- On-chip SRAM
- Audio
- Analog/digital converter (ADC)
- Security
- Internal temperature sensors
