Programming the Arduino Uno R4: tips and tricks

2nd July 2024
Paige West

The Arduino Uno R4, an upgrade from its predecessor, brings new capabilities and performance enhancements to the table.

Programming this versatile microcontroller efficiently can significantly impact the success of your projects, whether you're working on IoT applications, automation, or educational experiments.

This article delves into essential tips and tricks to help you maximise the potential of the Arduino Uno R4.

Understanding the hardware

Before diving into programming, it’s crucial to understand the hardware specifications of the Arduino Uno R4. The board features an improved microcontroller, offering increased processing power and memory. Familiarising yourself with the datasheet and pinout diagram is essential. The microcontroller's features, such as the number of digital I/O pins, PWM outputs, and analog inputs, should guide your design and coding strategy.

Optimising code for performance

1. Efficient use of memory:

The Arduino Uno R4 has limited SRAM (Static Random-Access Memory), so it's vital to manage memory usage carefully. Avoid using large global arrays unless necessary. Instead, use local variables or dynamically allocate memory.

Use the F() macro to store constant strings in Flash memory (PROGMEM) rather than SRAM. For example:

2. Minimising power consumption:

For battery-powered projects, optimising power consumption is crucial. Use the sleep modes provided by the microcontroller to save power when the board is idle. The LowPower library is useful for this purpose.

3. Optimising loop execution:

Ensure the loop() function is efficient and does not contain blocking code. Use non-blocking techniques such as state machines or timers. The millis() function is useful for creating non-blocking delays.

Advanced programming techniques

1. Using interrupts:

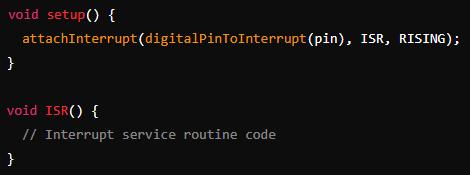

Interrupts allow the Arduino to respond to external events immediately. They are useful for tasks like counting pulses or responding to sensor triggers. Use the attachInterrupt() function to set up an interrupt service routine (ISR).

2. Leveraging libraries:

The Arduino ecosystem provides a wealth of libraries to simplify complex tasks. Libraries for sensor interfacing, communication protocols, and hardware abstraction can save development time and improve code reliability. Always check for updates and read the documentation to utilise the full potential of these libraries.

3. Modular programming:

Organise your code into functions and classes to improve readability and maintainability. Modular programming allows you to reuse code and isolate bugs more effectively.

Debugging and testing

1. Serial debugging:

The Serial library is a powerful tool for debugging. Use Serial.print() and Serial.println() to output variable values and program state information. Ensure to initialise the Serial port in the setup() function:

2. Using the Arduino IDE debugger:

The Arduino IDE now includes an integrated debugger for supported boards. This tool allows you to set breakpoints, watch variables, and step through code, providing deeper insights into program execution.

3. Automated testing:

For larger projects, consider automated testing frameworks such as AUnit. Automated tests help verify code functionality and catch bugs early in the development cycle.

Best practices for collaboration

1. Version control:

Use version control systems like Git to manage code changes and collaborate with other developers. Platforms like GitHub and GitLab provide tools for issue tracking, code review, and project management.

2. Documentation:

Well-documented code is easier to understand and maintain. Use comments to explain complex logic and include a README file with setup instructions and an overview of the project.

3. Code reviews:

Conduct regular code reviews to ensure code quality and share knowledge among team members. Peer reviews can identify potential issues and improve overall code quality.


Programming the Arduino Uno R4 efficiently requires a combination of hardware knowledge, coding best practices, and effective debugging techniques. By understanding the hardware, optimising code, leveraging advanced programming techniques, and following best practices for collaboration, you can maximise the potential of this versatile microcontroller. Whether you're developing IoT solutions, automation systems, or educational projects, these tips and tricks will help you create robust and efficient applications with the Arduino Uno R4.
