Building the world’s smallest reed relay isn’t just a design exercise, it’s a test of how well a supply chain can repeat precision at scale. When components shrink to this extent, tolerances stop being theoretical and start dictating what can be manufactured, assembled, and relied upon at scale.
For more than 30 years, Pickering Electronics has worked closely with its chemical etching partner, Precision Micro, to develop and produce the miniature lead frames and metal components that support its most compact designs.
Progress in electronics is often measured in fractions of a millimetre. While individual components may be tiny, the consequences of failure rarely are. That’s why modern electronics manufacturing relies on automation and repeatability, with densely packed systems leaving assembly lines highly sensitive to dimensional variation.
In high-volume production environments, components must also more than meet specification ‘on paper’. They need to perform consistently through automated handling and assembly, where even minor dimensional differences can disrupt throughput.
At the same time, R&D teams are under pressure to reduce footprints, shorten development cycles, and bring new designs to market quickly, while preserving long-term reliability.
For many, this prods regular reassessment of manufacturing routes and suppliers as part of prudent supply-chain resilience, ensuring repeatability and scalability as designs shrink.
Pickering’s challenge
Known for over 50 years of reed relay expertise, Pickering Electronics design and manufacture reed relays for test & measurement, semiconductor automated test equipment (ATE), and other demanding applications.
That’s how the company has built a reputation on miniaturisation and dependable performance in applications where failure is simply not an option. This challenge is one shared by much of the electronics sector but felt more acutely at the high-reliability end of the market.
For instance, reed relays can incorporate precisely formed metal subcomponents into high-value assemblies. However, this raises the stakes because small variations early in the supply chain can compromise performance later in the build process, when rework is expensive or impractical.
Components must also meet extremely tight tolerances too. Not just for performance reasons, but because they feed directly into automated assembly processes where even small deviations can cause disruption across production lines and, by extension, across the wider group.
Overlay this with the need for rapid prototyping, frequent design iteration and product lifecycles that can span decades, the challenge multiplies. So, how do you maintain precision and repeatability across the supply chain while pushing the boundaries of miniaturisation?
Establishing the manufacturing route
Pickering’s relationship with Precision Micro began as a response to these constraints. Chemical etching offers a reliable way to achieve fine, repeatable lead frame geometries while supporting rapid design iteration as relay footprints continued to shrink.
Precision Micro was selected based on its ability to deliver tight tolerances, predictable quality and dependable turnaround, all essential for components used in miniature, high-reliability devices.
And, as Pickering’s portfolio evolved, chemical etching became embedded into both development and production workflows, supporting early prototypes and volume manufacture.
Like many manufacturers operating in high-reliability markets, Pickering periodically reviews alternative processes, such as stamping, as part of robust supply chain management. Yet alternatives can struggle to meet the combined demands of accuracy, repeatability and cost when applied to extremely small, complex geometries.
Why chemical etching?

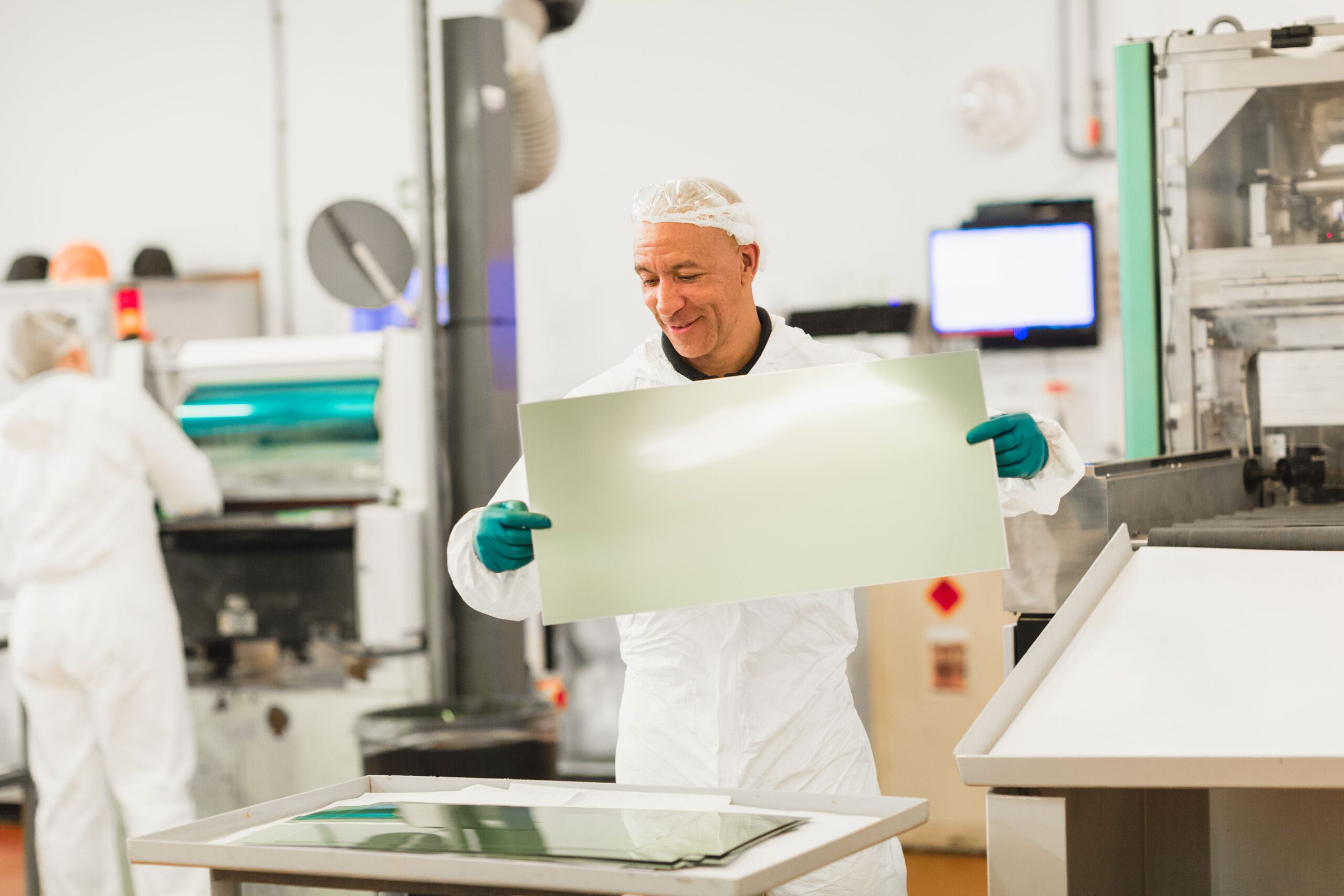

The process of chemical etching uses controlled chemical machining to form metal components, avoiding the mechanical stresses associated with stamping lead frames. This enables extremely fine detail, tight tolerances and consistent geometry, all critical in miniature electronic assemblies.
That capability matters most during development. New relay designs often involve multiple iterations before the correct configuration is achieved, which is usually driven by customer-specific requirements or the need to reduce printed circuit board (PCB) footprint.
Chemical etching supports this need by enabling fast turnaround and low-cost tooling, allowing engineers to refine designs without committing to expensive press tools too early.
As designs move from development into production, the emphasis then moves from flexibility to repeatability. Precision Micro’s manufacturing relies on automated inspection, where dimensional accuracy and visual uniformity is essential.
At this stage, even small variations can disrupt throughput. Chemical etching provides the process stability required to scale reliably from prototype to volume manufacture, otherwise, the consequences of a supplier failing to meet tolerance requirements are immediate and far-reaching.
Pickering Electronics operates as part of a wider group supplying relays, test and measurement equipment and interconnect solutions. This means that disruption in one area could quickly affect others.
The world’s smallest two-pole reed relay
This capability of chemical etching is best illustrated by one of Pickering’s latest product launches, the ultra-miniature two-pole reed relay measuring just 5 × 5mm and 15.5mm in height. This is also known as the world’s smallest two-pole reed relay.
Integrating multiple etched lead frames into such a compact assembly took around two years of development, resulting in what’s described as the world’s smallest relay of its type.
Reaching this level of miniaturisation was not a single step, but the result of a manufacturing approach that has evolved over time. Like any manufacturing partnership, especially one that goes beyond 30 years, processes have adapted alongside changes in design requirements and production methods.
For example, challenges came with the expansion of Pickering’s Czech manufacturing facility and the transition to higher-volume production outside of the UK. The move was strategically necessary to scale production and for better links within mainland Europe, but introduced short-term challenges around forecasting, scheduling and ordering behaviour as new teams and systems bedded in.
Precision Micro supported the transition by working through fluctuating demand patterns and capacity constraints, particularly around specialist processes such as plating.
“Chemical etching allows us to iterate quickly without locking ourselves into expensive tooling, like stamping, too early,” explained Julie Benson, Operations Manager at Pickering Electronics. “That flexibility is often what keeps development moving, but it’s not only cost, nor about tolerances in isolation either. It’s about working together when requirements evolve or when something unexpected needs solving.”
“A part can meet specification and still cause problems if variation isn’t tightly controlled, especially once it goes into automated assembly,” said Rachael O’Connor, Sales Office Manager at Precision Micro.
“That’s where small variations start to show up very quickly, so the process must deliver the same result every time and not just pass inspection once. On the rare occasions something needs adjusting, both teams focus on finding a practical solution rather than pointing fingers.”
The same manufacturing approach is being applied to Pickering’s newest designs. Recent launches, such as the vertically oriented 125 series, which is designed to save printed circuit board (PCB) space, along with the high-voltage 600 series, illustrate the differing challenges involved as relay designs evolve.
What Pickering’s smallest relay ultimately demonstrates is that miniaturisation only succeeds when precision can be repeated, not just achieved once. After more than three decades of collaboration, Pickering Electronics and Precision Micro have built manufacturing processes that scale reliably as designs shrink, turning tight tolerances from a potential burden into something the manufacturing process has to be built around.
