GlacialPower launches constant voltage LED driver series

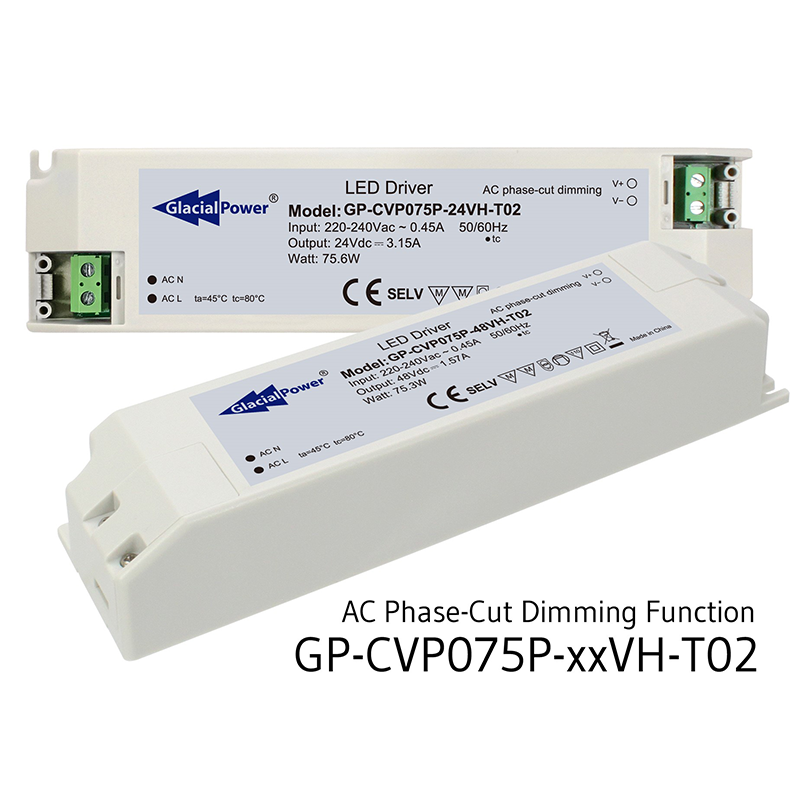

GlacialPower, one of the worldwide LED driver technology leading solution providers, announces the GP-CVP075P-xxVH-T02 (IP20) constant voltage LED driver series which has the AC phase-cut dimming feature and work with leading (TRIAC) and trailing (ELV) edge dimmers.
The rated power output is 75W, and DC outputs are available in 12V, 24V, and 48V models. At full load these drivers provide the outstanding power factor correction which greater than 0.97 at 230VAC. The power efficiency of GP-CVP075P-xxVH-T02 can reach 90% and no-load power consumption < 0.5W at 230VAC. The set up time less than 0.5S at 230VAC full load.
GP-CVP075P-xxVH-T02 series support AC input voltage range from 200 to 264VAC. The GP-CVP075P-xxVH-T02 series can cover most of market demands for LED strip, neon flex, signage, and light box markets. The GP-CVP075P-xxVH-T02 series include the protection functions of over current protection (OCP), short circuit protection (SCP), over temperature protection (OTP), and over voltage protection (OVP). These features protect the LED driver and lighting fixture to prevent the product’s damage and ensure the reliability.
Features:
- AC phase-cut dimming.
- Input Range from 200VAC to 264VAC.
- Constant Voltage mode.
- Active PFC design.
- Protections: OVP / OCP / SCP / OTP.
- Work with leading edge (TRIAC) and trailing edge (ELV) dimmers.
- No-load power consumption < 0.5W at 230VAC.
- Suitable for LED strip, signage, light box, and neon flex.

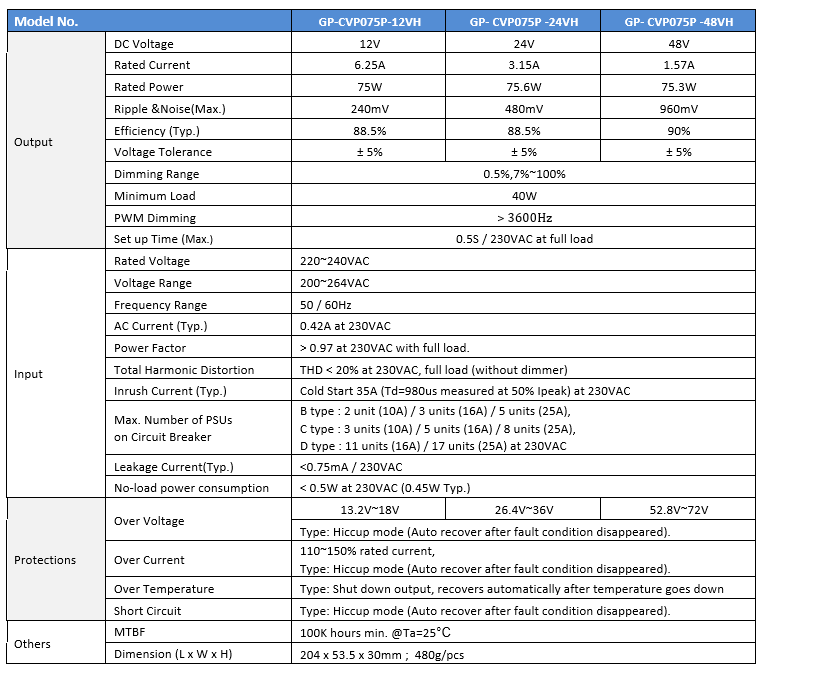

Specifications:
