Lighting

Chip Scale Package LEDs take commercial lighting to another Level

7th October 2022
Sheryl Miles

Bridgelux is proudly launching its series of Chip Scale Package (CSP) LEDs.

Made without bond wires or plastic moulds, Bridgelux’s advanced flip chip technology and phosphor coating technology makes them the perfect fit for high dense clustering, tuneable CCT and high luminous flux output.

Seamless and flexible assembly on boards enables customer specific COBs and modules for commercial, entertainment, industrial and outdoor lightings.

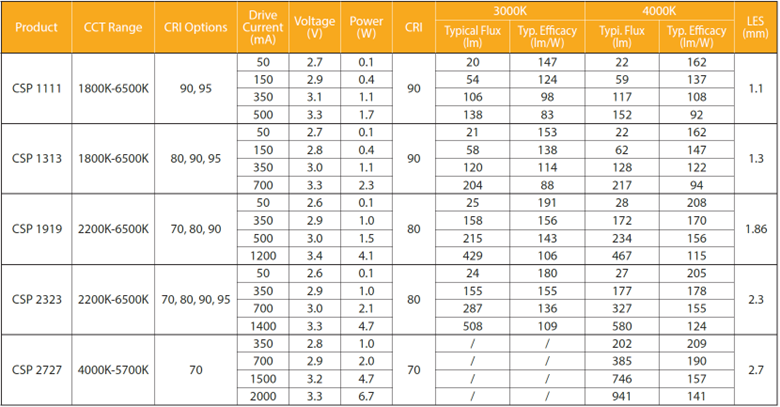

Bridgelux CSP family consists of a wide range of operating current options from 0.5 to 4W and up to 7W maximum. The real chip scale package is available in the form factor of 1.1, 1.3, 1.86, 2.3 and 2.7mm square for CCTs from 1800K – 6500K and with CRIs of 70, 80, 90 and 95.

Bridgelux CSP technology is optimised to deliver high efficacy at high current density. CSP2727 4000K CRI 70 can deliver the industry best efficacy of 209lm/W at 350mA and 190 lm/W at 700mA, respectively.

Bridgelux further accelerates the industry’s adoption of CSP Technology by offering customised CSP COBs, linear modules and flexible strips along with connectors, optics, wiring and/or electronics to support time-to-market and to simplify the supply chain.

The compact size along with exceptional performance can greatly reduce the system costs and become a reliable tool for designers, who have come to associate Bridgelux products with exceptional quality and utility. In addition, CSP colour consistency across the beam angle enables high quality illumination across multiple applications.

“Bridgelux is adding new CSP products including RGBW, F90 and Thrive (Full Spectrum) to our white CSP product family to give manufacturers and designers more choices” says Dr. Yi-Qun Li, CEO of Bridglux. “Our RGBW CSP solution is ideal for smart lighting applications, and our white tuneable options are selectable along black body curve (BBC) from 2700K - 6500K in both CRI 90 and CRI 95.”

The F90 and CSP Red use narrowband red phosphor converted technology to deliver the highest CRI 90 and white tuneable performance in the industry for residential, entertainment commercial lighting.

Thrive CSP uses Bridgelux patented broad blue technology, and it is the first full spectrum CSP product of its kind in the market.

At Light+Building 2022, which runs from 2 – 6 October 2022 in Frankfurt, Bridgelux is unveiling the CSP and RGBW products.

The CSP1111 to CSP2323 are available through Bridgelux distribution network. CSP2727 will be available as early as December 2022. The RGBW and Thrive CSP will then follow in the spring of 2023.
