TPS563211DRLR
Texas Instruments
Price range: $0.40 - $1.06

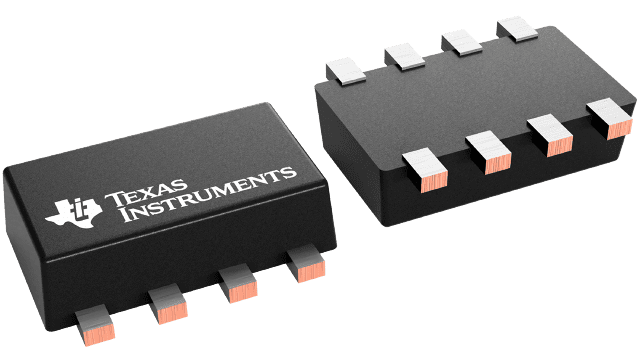

4.2-V to 18-V, 3-A, synchronous buck converter with 1% accuracy, PG/SS and PFM/forced-PWM in SOT583 8-SOT-5X3 -40 to 125
TPS563211DRLR Inventory
by: Texas Instruments
Parameters
Vout(Max)(V)
7
Duty cycle(Max)(%)
98
Control mode
ACM/AECM
Rating
Catalog
Type
Converter
Package size
mm2
Approx. price(US$)
.3 | 1ku
Features
Enable,Forced PWM,Light Load Efficiency,Over Current Protection,Power Good,Soft Start Adjustable
Vin(Min)(V)
4.2
Package Group
SOT-5X3|8
Vin(Max)(V)
18
Regulated outputs(#)
1
Switching frequency(Min)(kHz)
550
Vout(Min)(V)
0.6
Iq(Typ)(uA)
120
Iout(Max)(A)
3
Operating temperature range(C)
-40 to 125
TI.com inventory
0
Switching frequency(Max)(kHz)
650
Features
Part Family
TPS563211
Status
PREVIEW
ROHS
Y
PB Free
See ti.com
